PA 2 TN 3022


Valve with double pneumatic actuator for hoppers. From DN 80 to DN 200.

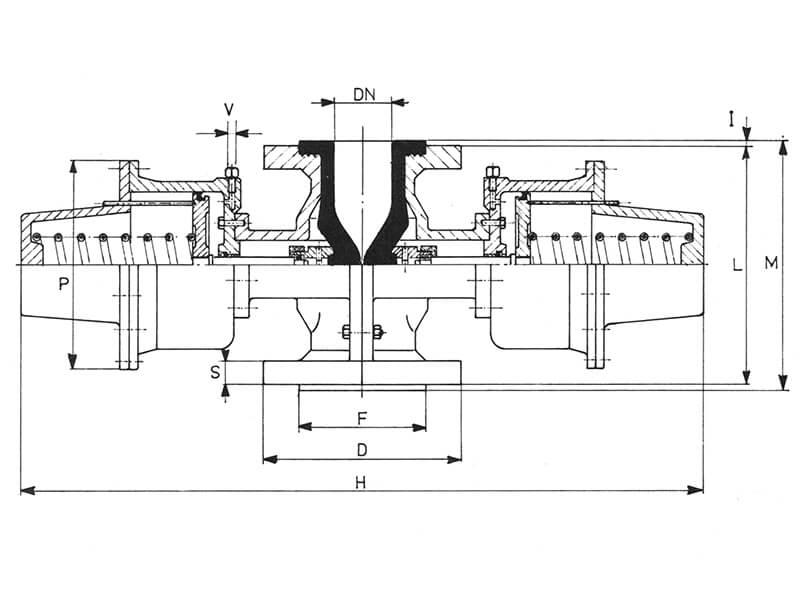

Characteristic and dimensions

Balanced valve with double pneumatic actuator. Normally closed valve. Delivery of compressed air to the pneumatic cylinders opens the valve.

Cylinders and pistons: aluminum alloy.

Valve body: normally aluminum.

Construction features: as per type (TN 2015/8).
